| 1 |
100100256Cylinder Stud Bolt A |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 2 |
100204636Cylinder Stud Bolt A |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 3 |
100102977Pipe Assy |
2 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 4 |
100033088-0005Bolt, M6×85 |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 5 |
100011540-0007Bolt, M6×50 |
10 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 6 |
100011543-0001Bolt, M6×65 |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 7 |
100101185BeaRing,(6006×2|20 C3) |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 8 |
100205818Pressure Plate Bearing |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 9 |
100055591-0006Bolt, M6×12 |
3 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 10 |
100059484NEEDLE BUSH,(NK15×27×12) |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 11 |
100081756-0002Right Crankcase Block |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 12 |
100054649Bearing,(6303_C3) |
2 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 13 |
100053701Baffle |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 14 |
100066540BeaRing,(TM63|28X1E2|P5) |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 15 |
100101062Needle BeaRing,(Hk21×28×10) |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 16 |
100100311Cylinder Stud Bolt B |
2 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 17 |
100100951BeaRing,(6204 C3) |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 18 |
100010557Pin,φ10×14 |
2 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 19 |
100082934Gasket Inlet Pipe |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 20 |
100054647Bearing,(6202Z C3) |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 21 |
100081755-0002Left Crankcase Block |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 22 |
100104700Oil Seal 20×34×7 |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 23 |
100106548Washer,φ12.1×2×φ20 |
1 |
|
1.00 ₾
1.000.85₾
|
|
|
|
|
| 24 |
100100331-0006Oil Drain Plug |
1 |
|
5.00 ₾
5.004.25₾
|
|
|
|
|
| 25 |
100104943Strainer Oil Filter |
1 |
|
15.00 ₾
15.0012.75₾
|
|
|
|
|
| 26 |
100104866SpRing,Oil Filter Strainer |
1 |
|
5.00 ₾
5.004.25₾
|
|
|
|
|
| 27 |

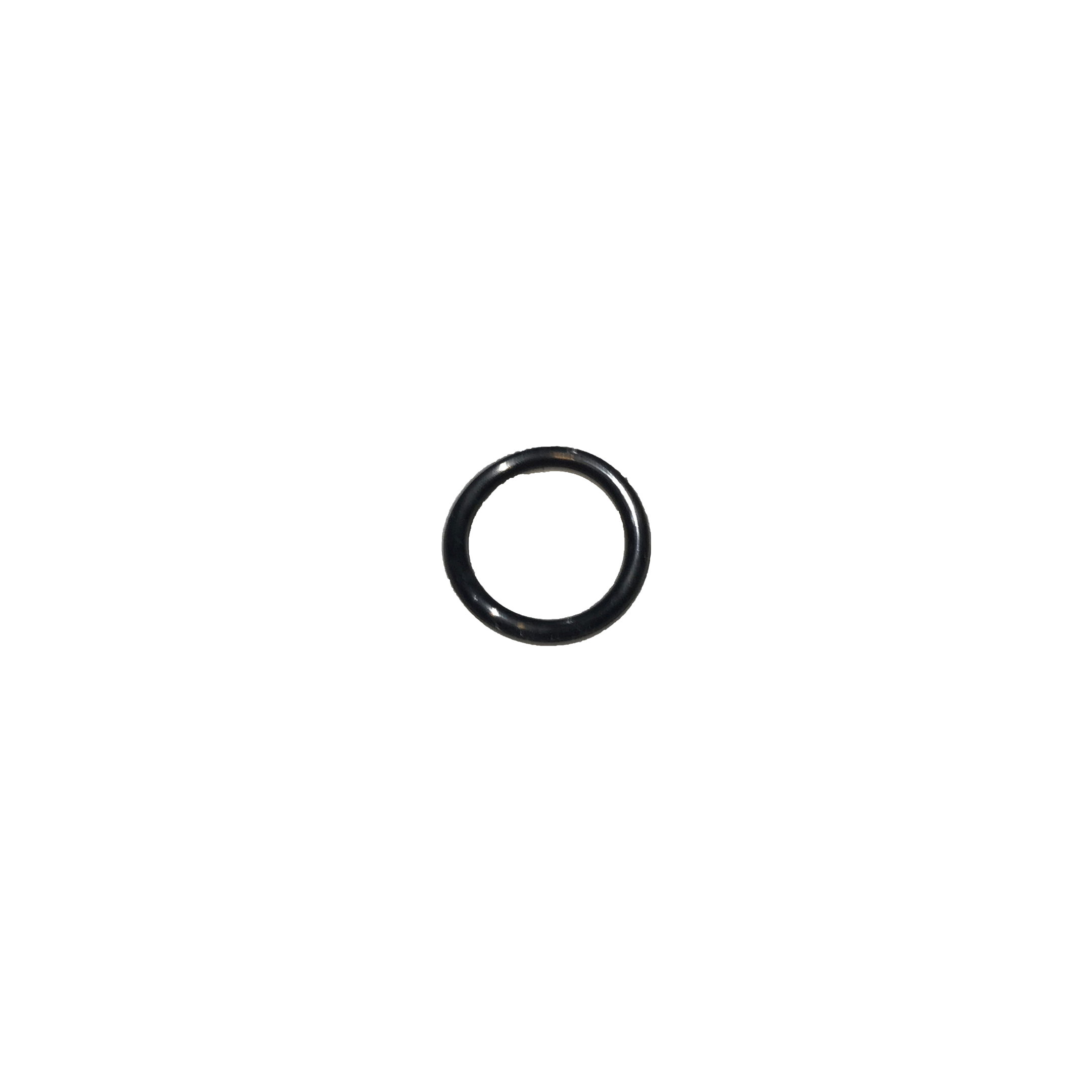

100107713O-Ring,φ22.5×3.55 |
1 |
|
3.00 ₾
3.002.55₾
|
|
|
|
|
| 28 |
100102871-0002Cover Valve Chamber |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 29 |
100104650Oil Seal 14×28×7 |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 30 |
100102708-0005Gearshift Switch Comp |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 31 |
100100472Screw |
2 |
|
0.00 ₾
0.000₾
|
|
|
|
|
| 32 |
100140709Position Plate |
1 |
|
0.00 ₾
0.000₾
|
|
|
|
|
