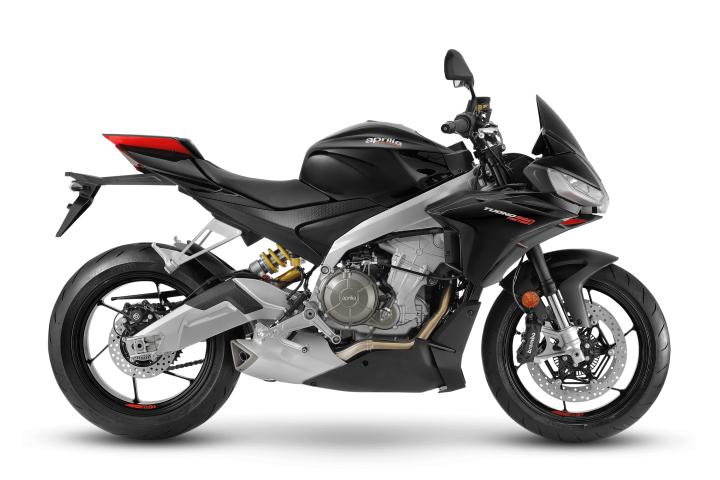

TUONO 660 FACTORY

659cc / 2 cylinder in line (transverse), 4 stroke, 4 valves per cylinder, double overhead camshafts

659 cc

2

81 x 63.93 mm

13.5 +/- 0.5: 1

100 / 73.5 at 10500 rpm

67.0 Nm at 8500 rpm

0.4060 kw / kg

1400 +/- 100 rpm

10500 +/- 100 rpm

In.: 0.10 - 0.15 mm Ex.: 0.10 - 0.20 mm

Multi plate wet clutch with mechanical control lever on left side of the handlebar. Anti-juddering and slipper clutch systems

Electric

Morse chain on intake and exhaust camshafts, bucket tappets and valve clearance adjustment with calibrated pads

Wet sump with heat exchanger coaxial with oil filter

Liquid

3-way thermostatic valve, cooling radiator with electric fan and expansion tank

6-axis IMU, APRC suite that includes ATC (traction control), AWC (wheelie control), AEB (engine brake) AEM (engine mapping), ACC (cruise control), 5 Riding modes (Road and Track, 3 pre-set and 2 customisable

Airbox with head-on intake. 2 Ø 48 mm throttle body, Ride-by-wire engine management

6 speed with Aprilia Quick Shift (AQS) up and down

520 / 110 LINK

16 / 43

Aluminium dual beam chassis with removable seat-supporting subframe

Kayaba Ø 41 mm upside down fork with top out spring, Aluminium pins to fasten radial callipers. Rebound, compression and spring pre-load adjustment. 110 mm wheel travel

Asymmetrical aluminium swingarm. Monoshock with piggy-back, rebound, compression and spring pre-load adjustment. Wheel travel: 130 mm

Multi-map Cornering ABS

320 mm discs, four-piston callipers - with 32 mm pistons and 2 pads - radial master cylinder and steel braided brake hose.

220 mm disc, two-piston calliper - with 34 mm pistons - master cylinder with integrated reservoir and steel braided brake hose.

120/70 ZR17 (58W) / 2.5 BAR

180/55 ZR17 (73W) / 180/60 ZR17 (75W) / 2.8 BAR

1995 mm

745 mm

1150 mm

1370 mm

820 mm

181 kg

393 kg

2

2.3 L / SAE 10W 50

1.8 +/- 0.2 L

DOT4

15 L (95 R.O.N.)

SAE 7.5W

NGK IR MR9DI-7

YTZ10S

A

4.9 L / 100km

EURO 5

116 g/km

40 000 km / 24 Month

10 999 €
